Description

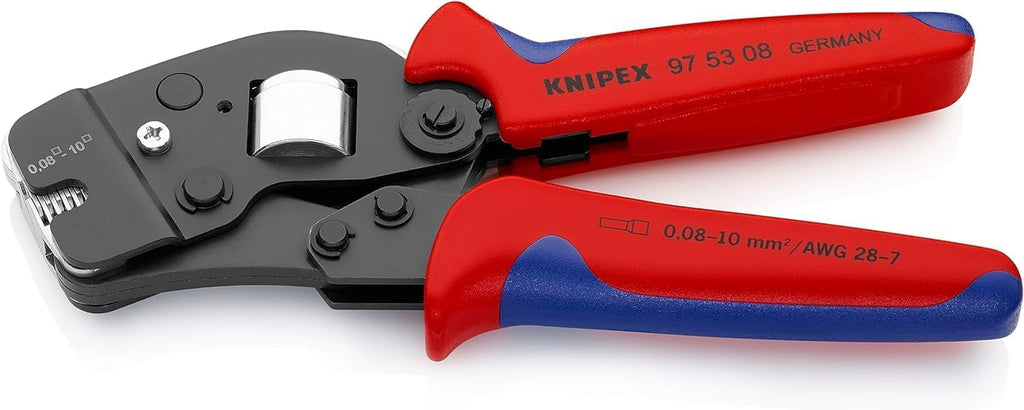

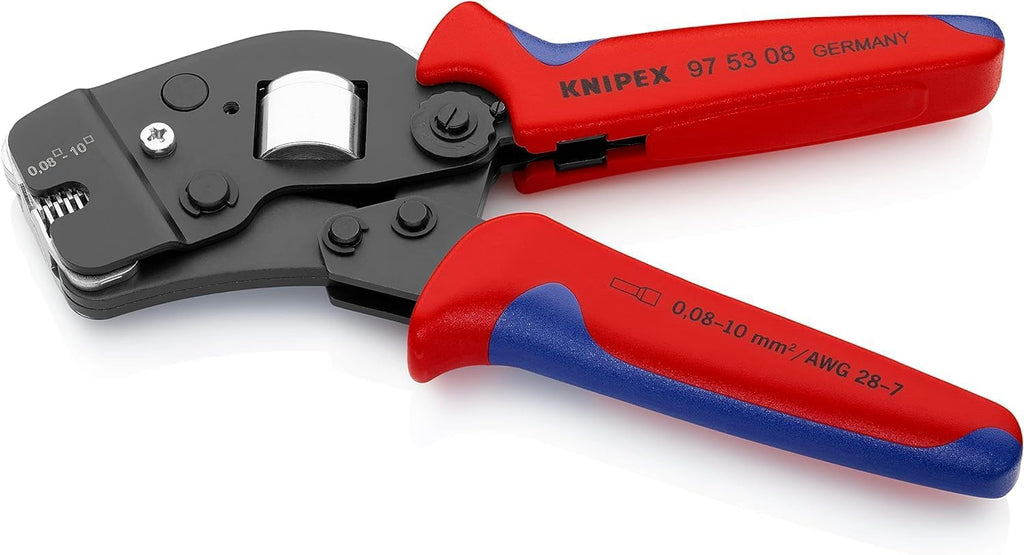

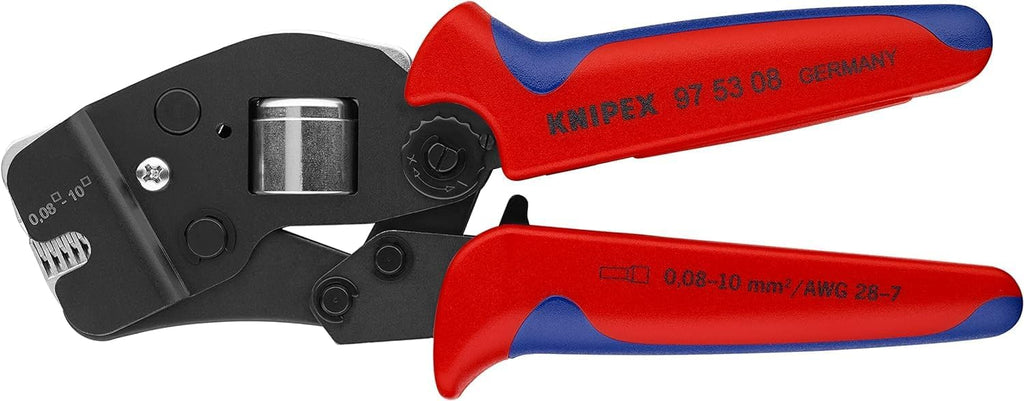

- 97 53 08 Self-Adjusting Crimping Pliers with multi-component grips
- For crimping wire ferrules according to DIN 46228 parts 1 + 4.
- Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die.

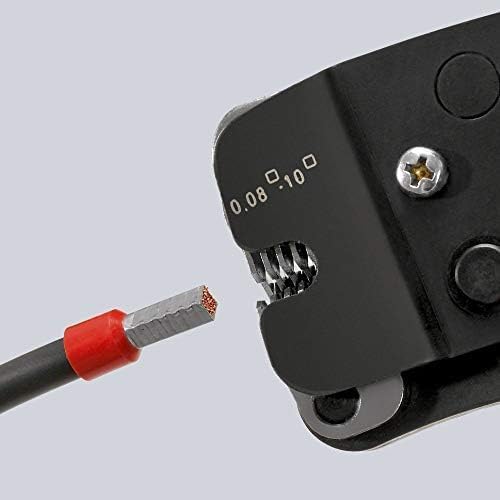

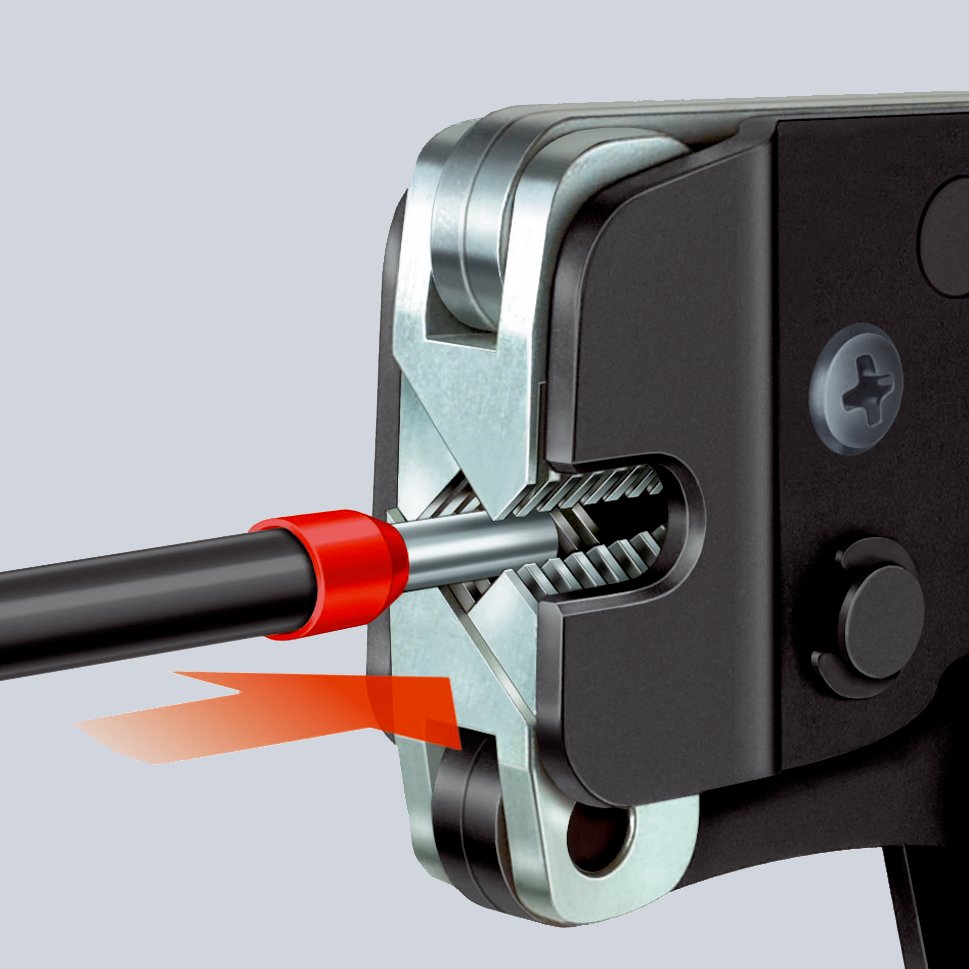

- Frontal insertion of the wire ferrules into the pliers.
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism).
- Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable.
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation.
- Handy shape and low weight provide high operation comfort.
- Compression from 0.08 – 10.0 mm² in one profile.

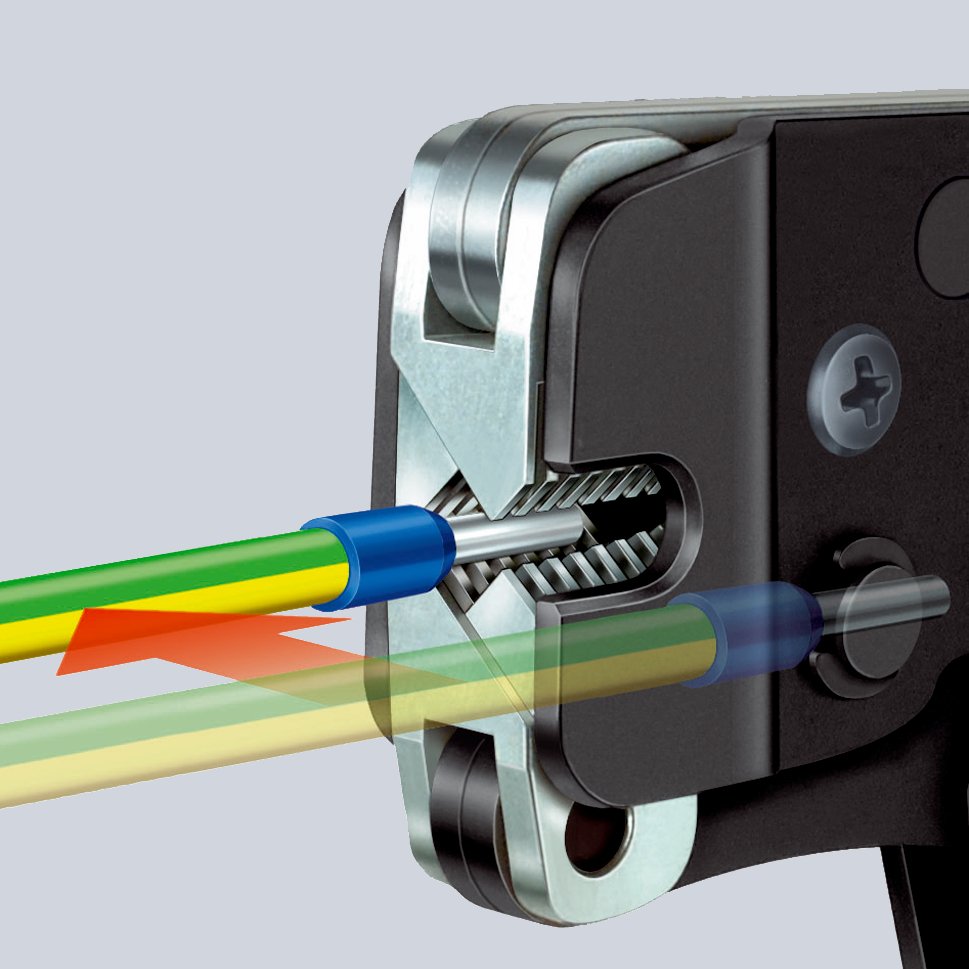

- Wire ferrules up to 2.5 mm² can also be loaded parallely from the side.
- Suitable in particular for all twin wire ferrules up to 2 x 4 mm² or 2 x AWG 10.
- Applications: Wire ferrules- Capacity in square millimetres: 0.8 — 10mm²- Number of crimping positions: 1- AWG: 28 — 7
